Ortur · Diode

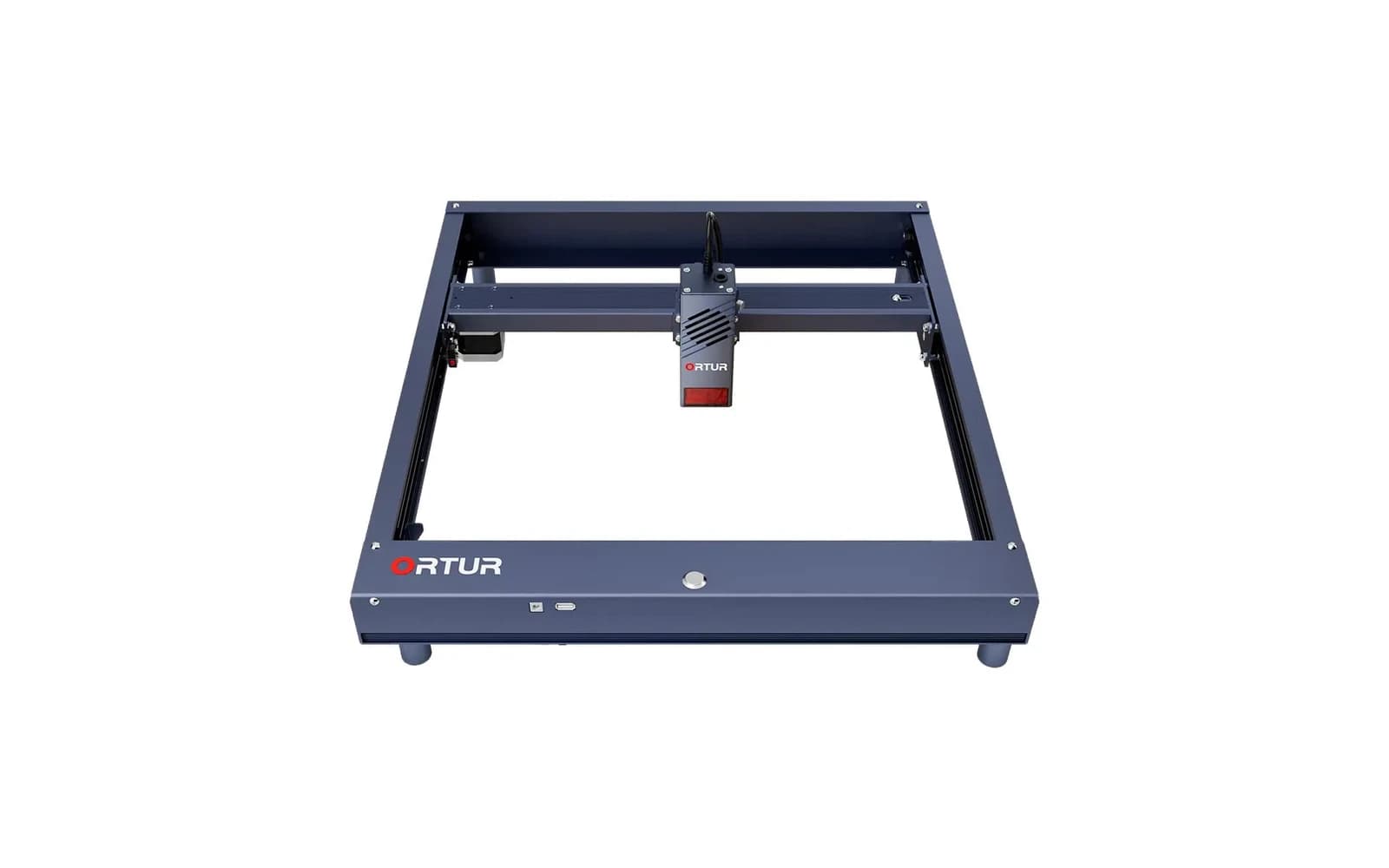

Ortur Laser Master H10
10W Ortur's enclosed-style H-series — faster frame, tighter integration than LM3
Last updated How we evaluate
Released June 2024
Choose a power option
Details below update for the selected power option.
Showing specs for: 10W
TL;DR
Ortur Laser Master H10 10W is the 10W SKU on the Ortur ortur laser master h10 line. The H10 is Ortur's step up from the open-frame LM3 line: a more integrated chassis with up to 20W diode power and higher advertised traverse speeds. Verify optical power on the listing — do not assume combined-watt marketing.
What this machine is for
Integrated open-frame Ortur diode for faster engraving and moderate thin-wood cutting.
Best for
Materials
Engraves
- · Wood
- · Leather
- · Slate
- · Anodized aluminum
- · Stainless (with spray)
Cuts
- · Basswood (up to 5 mm)
- · Black acrylic (thin)
- · Paper
- · Fabric
Cannot do
- · Clear acrylic
- · CO₂-level acrylic production
- · Bare metal without spray
- · Full enclosure safety (open frame)
Pros
- ✓More integrated frame than LM3
- ✓Higher speed potential on optimized jobs
- ✓Large Ortur community and firmware support
- ✓LightBurn-ready workflow
- ✓Competitive price vs xTool D1 Pro
Cons
- ✗Still open frame — eye protection required
- ✗40W marketing is optical/combined power
- ✗Less proven long-term than LM3 community volume
- ✗Air assist often extra
- ✗Not a CO₂ replacement for acrylic shops
Beginner notes
Choose 10W if it matches your typical jobs. Compare cut depth and price against other tiers in this product line before ordering.
Pro tips
Start with 20W unless you have a clear cutting use case — 40W adds cost with diminishing returns on thick cuts. Pair with Ortur air assist early for cleaner edges.
Pro / technical specs
Raw numbers for experienced users comparing machines.
- Laser spot size
- ~0.07 mm spot
- Max speed (spec)
- 333 mm/s
- Avg engrave speed
- 6–14 mm/s fill
- Avg cut speed
- 2–3 mm/s on 3–6 mm wood
- Motion precision
- 0.01 mm
